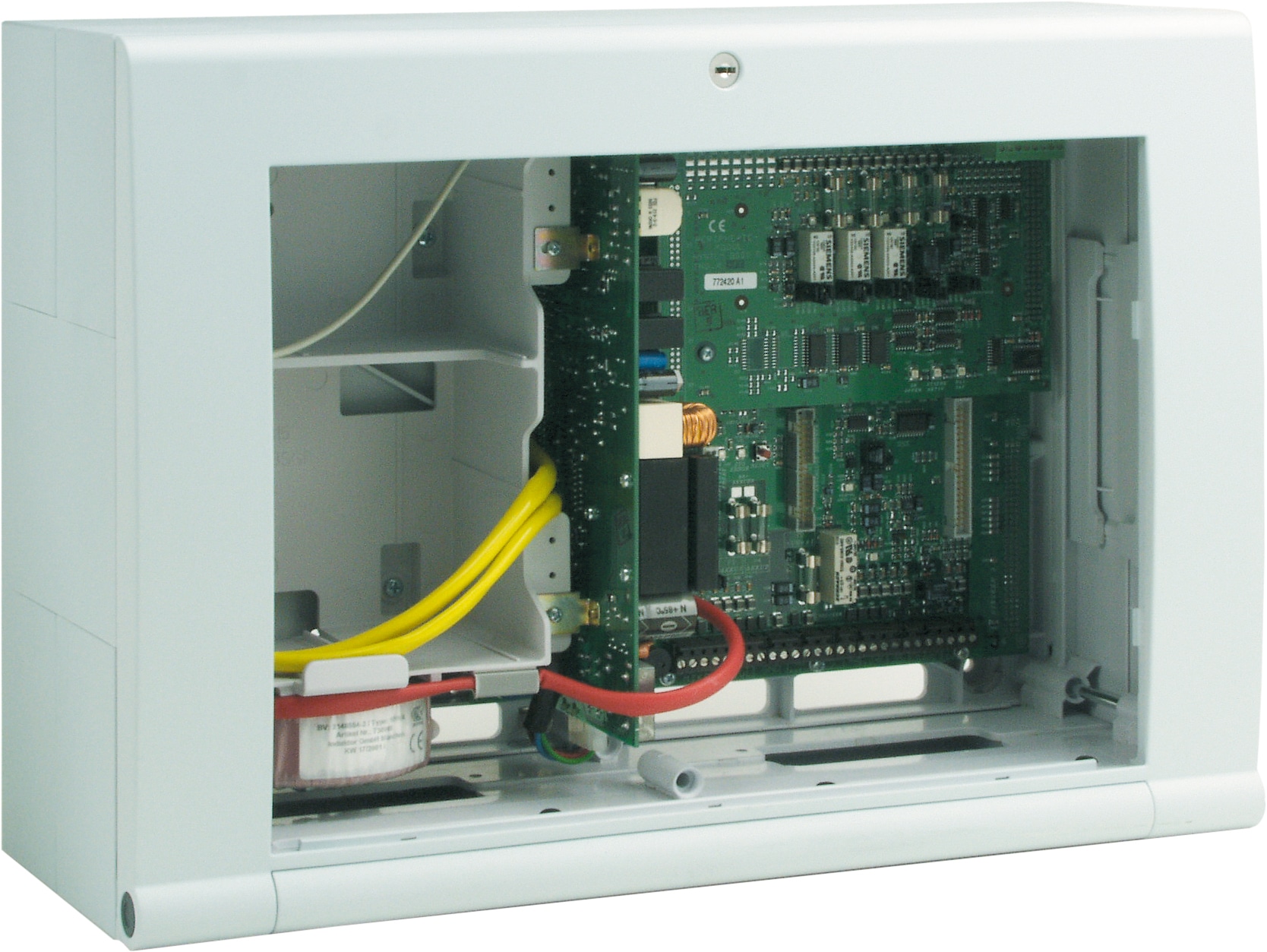

FACP IQ8Control C

808003

Approval:VdS, CNBOP, BOSEC

Basic design.
  • Max. two micromodules
  • Max. two esserbus analog loop modules
  • Short circuit and open circuit resistant loop operation
  • Loop installation with I-Y(ST)Y 0.8 mm cable for a maximum length of 3,5 km
  • Up to 127 esserbus devices (fire detectors respectively manual call points)/detector zones per loop
  • Up to 32 esserbus transponders per loop/operation of wireless components (see chapter 10)
  • Operation types TM and PM as per DIN VDE 0833 - 2 to avoid unwanted alarms being triggered
  • Fire brigade operating panel and alarm transmission unit interface on the peripheral module
  • The common relays, freely programmable, monitored, floating for up to 24 V DC/1A (on the peripheral module)
  • TTY or RS485 interface
  • Intergration in the short circuit and open circuit resistant essernet network with up to 31 fire detection panels depends on transmission rate
  • Connection to graphical supervisor WINMAG via serial essernet interface (SET)
  • Operating panel with alphanumerical display
  • 4 x 40 backlit LCD display
  • Event memory for up to 10.000 events
  • All System 8000 micromodules are compatible
  • Printer interface for internal printer
  • Two batteries with monitoring circuit
  • Monitored input for external power supply unit

Additional features for powered loop
  • Max. two analog powered loop modules
  • Bus powered, synchronously controlled, acoustic alarm signaling devices as per DIN EN 54-3 with alarm tone as per DIN 33404
  • Up to 48 powered loop base sounders (series 9200) per loop
  • Up to 32 powered loop IQ8Alarm per loop
  • Up to 48 IQ8Quad with alarm device per loop

Additional Information:
The operating front must be ordered separately and is not included in the price.

Scope of Delivery:

Housing with standard rear panel and front frame for operating panel fronts, interface board, power supply module, system software.
