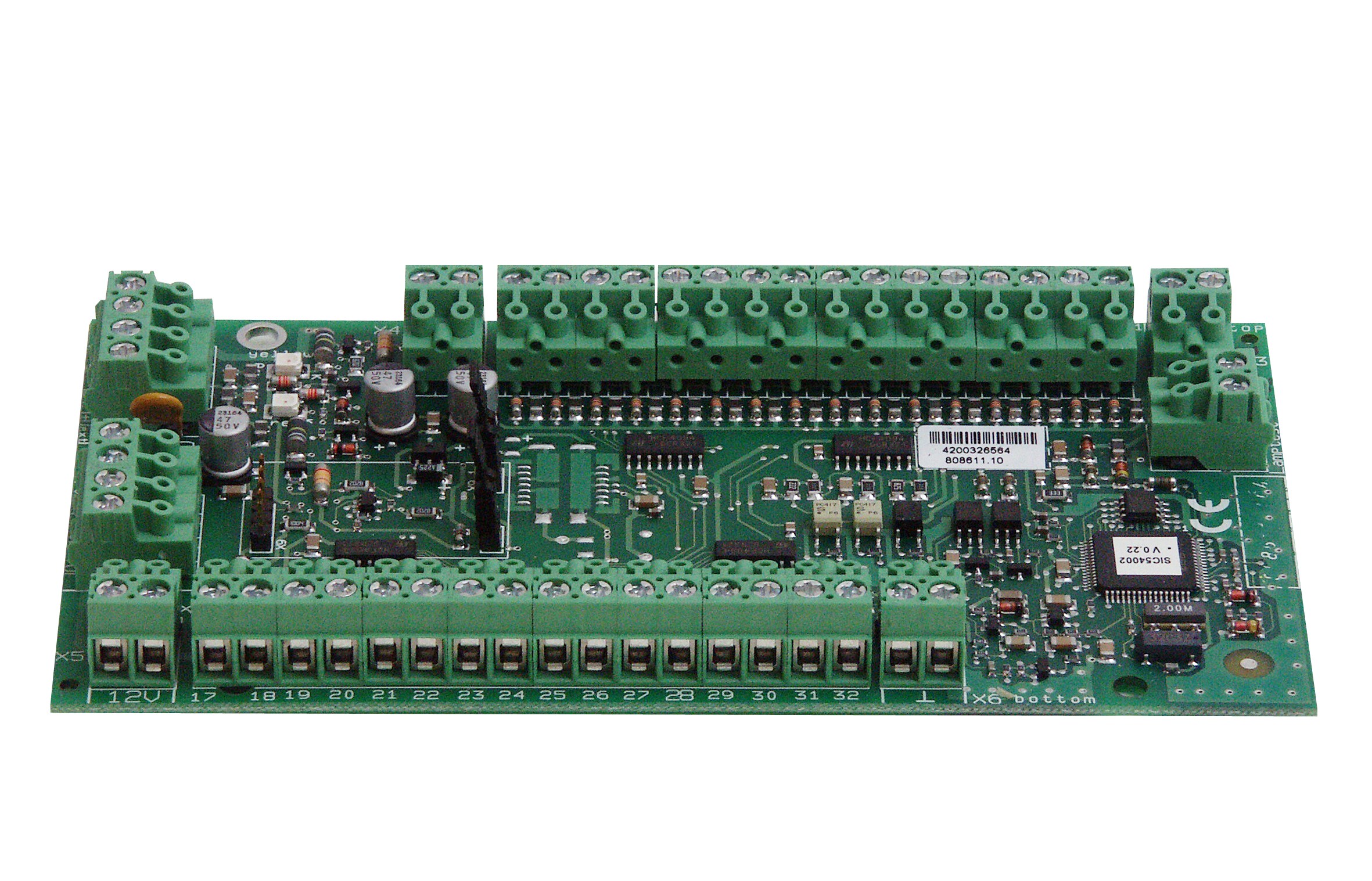

Moduł EBK 32LED - 32 wyjścia LED 12VDC

808611.10

Approval: VdS, CNBOP, BOSEC

The esserbus transponder works as a loop device on the multi-functional primary line. 32 optocoupler outputs for direct LED control (e.g. indicator) are found on this esserbus transponder module. There is one terminal screw per output on the switching mechanism. The module can be extended by adding the additional isolator board Part No. 788612. esserbus transponder voltage supply: via the multi-functional primary line. The esserbus transponder requires an external power supply.
The external voltage supply of the transponder can be programmed to be monitored in operating mode. The maximum line length from the transponder to the external device is up to 100 m.
  • Only one loop address is needed per transponder
  • Max. 100 transponders per FACP
  • Max. 32 transponders per loop
  • Max. 32 transponders per detector zone
  • 788612 Loop isolator PCB
  • 788600 Surface mounting housing gray, similar to RAL 7035
  • 788650.10 Surface mounting housing white, similar to RAL 9003
  • 788601 Flush mounting housing gray, similar to RAL 7035
  • 788651.10 Flush mounting housing white, similar to RAL 9003
