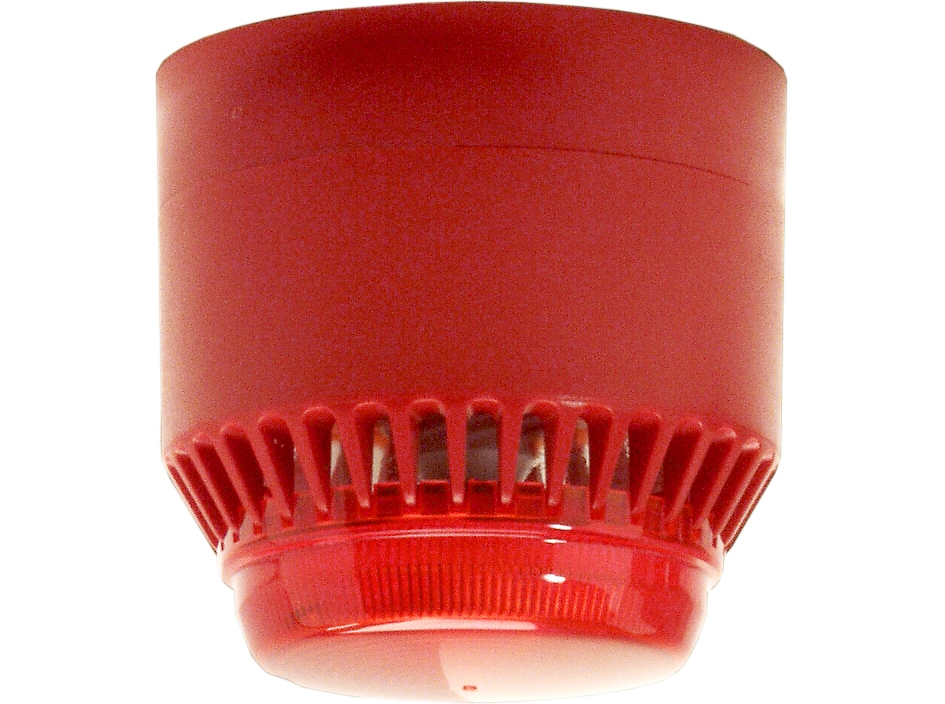

Sygnalizator akust/opt Flashni, 24VDC, 98dB, czerwony

766240.20

Approval VdS, CPCB

As 766240, but with 32 different alarm tones which can be selected via DIL switch. Alarm sounder and flashing ​light may be activated separately.
  • 32 selectable tones, 6 tones compliant with EN 54-3
  • Adjustable sound volume


Scope of Delivery

Deep base (Part No. 766237) IP65 in delivery included.
Alarm current @ 24 V DCapprox. 66 mA (flashlight + sounder) for DIN tone, 52 to 85 mA for all tones
Operating voltage18 ... 28 V DC
Sound level @ 24 V DC 98 dB for DIN tone, 83 to 110 dB(A) for all tones
Type of protectionIP66
Dimensionsø: 93 mm H: 120 mm (incl. deep base)
