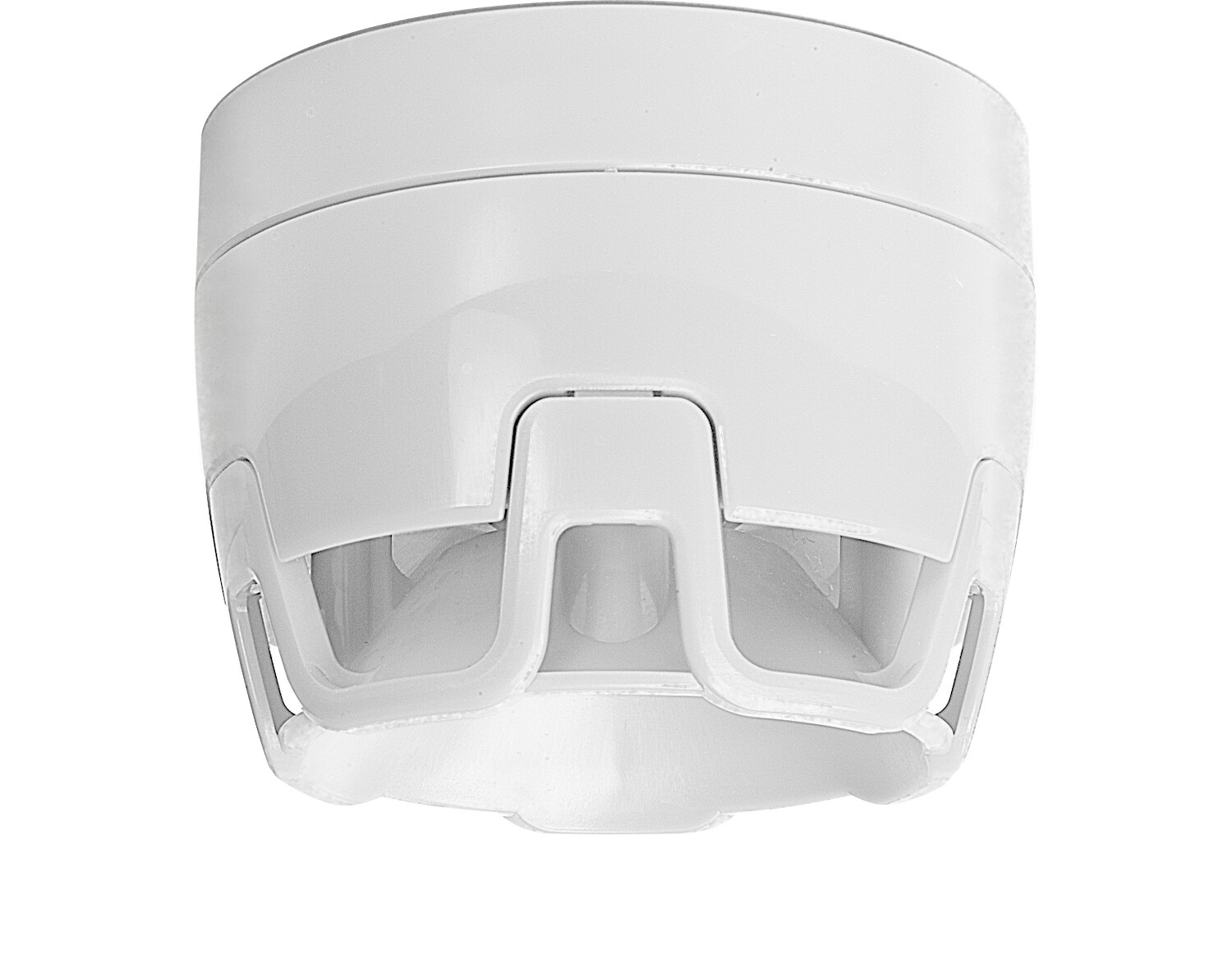

Sygnalizator akustyczny ENscape, 32 wzorce tonów, biały, płytka podstawa

CWSO-WW-S1

Approval: requested

As CWSO-RR-S1, but white.
  • EN 54-3 compliant
  • Suitable for 12 V and 24 V DC service voltage
  • Synchronous sound trigger
  • Volume adjustable to 2 levels at the device

Additional Information:
Not suitable for use outdoors or in damp areas. Please use therefore the optional bases and accessories (Part No. CWR, PS188, PS189). Use of the deep IP socket reduces the dB output by an average of 4 dB. Replacement for Part No. 766226.
Operating voltage 9 ... 29 V DC
Color white, similar to RAL 9003
Weight
approx. 190 g
Material Flame retardant PC/ABS
Air humidity < 96 % (non-condensing)
Sound level @ 12 V DC 96.2 dB(A) @ 1 m (DIN Tone)
Sound level @ 24 V DC 102.1 dB(A) @ 1 m (DIN Tone)
Type of protection IP 21C, IP 65 with base CWR
Specification EN 54-3 acoustic signaling device
Current consumption @ 12 V DC approx. 14.9 mA @ DIN Tone
Current consumption @ 24 V DC approx. 33.4 mA @ DIN Tone
Ambient temperature -25 °C ... 70 °C

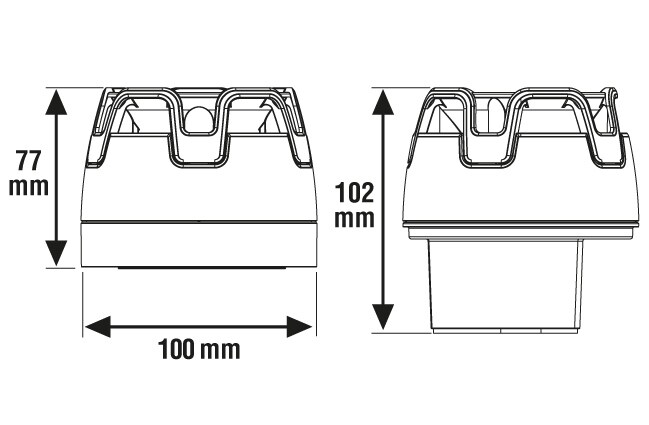

Dimensions ø: 100 mm H: 102 mm (incl. IP base)
  • CWW Base deep IP 65, white
  • PS188 Base deep, O-Ring
  • PS189 Base deep, seal
