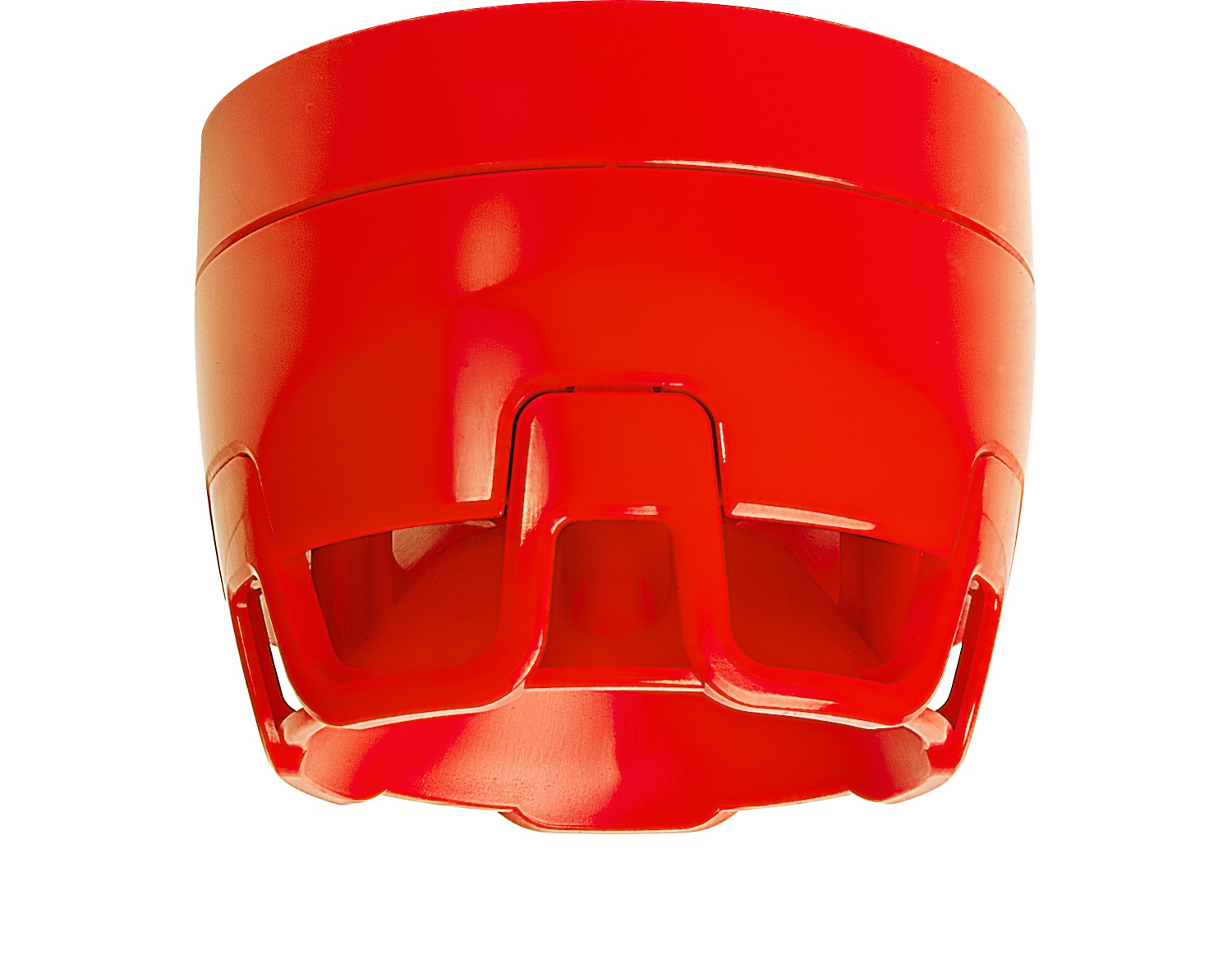

Sygnalizator akustyczny ENscape, 32 wzorce tonów, czerwony, płytka podstawa

CWSO-RR-S1

Approval: requested

The sounder is designed to alert building occupants of an emergency. The product features a new folded horn design which provides outstanding sound output at low current draw.
  • Deep base option with multiple cable entries for flexible installation
  • Designed with full range of common fixing centres
  • Approved to EN54-3
  • Superior sound output and low current consumption
  • 32 tones all approved to EN54-3
  • Adjustable volume settings (high or medium)
  • Two stage sounders enable alert and alarm sequences to be set for phased evacuation
  • Synchronized sound output
  • Suitable for wall and ceiling mount applications
  • Optimized for 12V and 24V systems

Additional Information:
Not suitable for use outdoors or in damp areas. Please use therefore the optional bases and accessories (Part No. CWR, PS188, PS189). Use of the deep IP socket reduces the dB output by an average of 4 dB. Replacement for Part No. 766225.
Connection terminal 0.5 ... 2.5 mm2
Operating voltage 9 ... 29 V DC
Color red, similar to RAL 3020
Weight
approx. 190 g
Material Flame retardant PC/ABS
Air humidity < 96 % (non-condensing)
Sound level @ 12 V DC 96.2 dB(A) @ 1 m (DIN Tone)
Sound level @ 24 V DC 102.1 dB(A) @ 1 m (DIN Tone)
Type of protection IP 21C, IP 65 with base CWR
Specification EN 54-3 acoustic signaling device
Current consumption @ 12 V DC approx. 14.9 mA @ DIN Tone
Current consumption @ 24 V DC approx. 33.4 mA @ DIN Tone
Ambient temperature -25 °C ... 70 °C

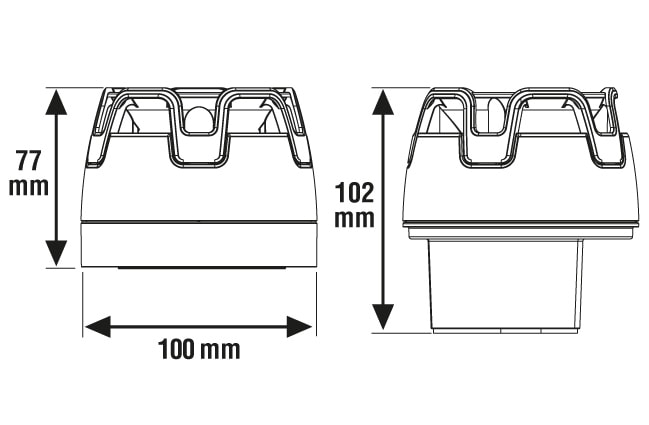

Dimensions ø: 100 mm H: 102 mm (incl. IP base)
  • CWR Base deep IP 65, red
  • PS188 Base deep, O-Ring
  • PS189 Base deep, seal
