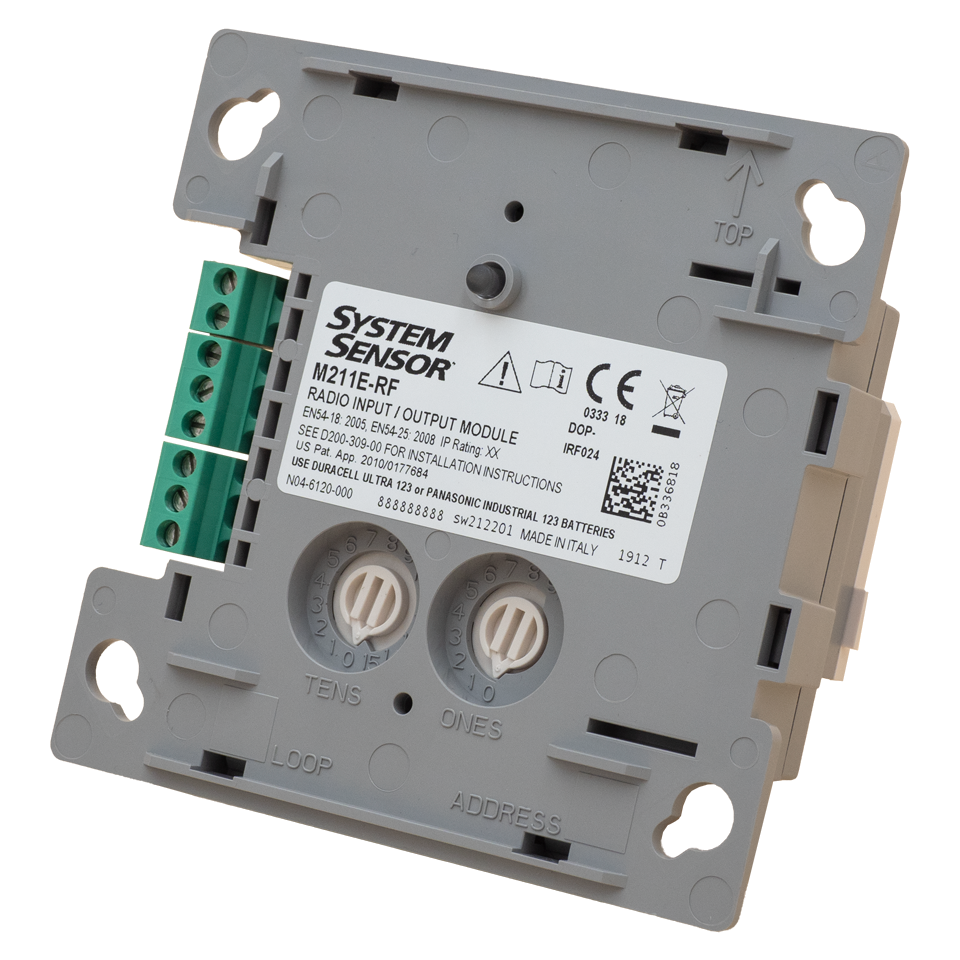

Input/Output Module

M211E-RF

The Morley Wireless Input/Output Module forms part of the Agile range of products that cover a wide range of applications where wiring is undesired. The wireless platform is powered by robust mesh network technology providing up to two communication paths to each wireless device. This makes the network highly reliable, protecting against broken communication links. Mesh network technology enables flexible and economic installations in a wide variety of building footprints.

• Wireless mesh network bidirectional communication technology
• Two communication paths to each wireless device
• 18RF channels at 865Mhz-870Mhz
• 2 integrated antennas on each wireless fire device
• Up to 400m free air communication range
• Upto 5 years average battery service life
• Morley Protocol loop communication
• Addresses set using rotary switches
• Wired fire devices look and feel
• Patented battery service life prediction feature
• Loop powered Gateway
• Upto 32 wireless detector/devices per gateway
• Agile IQ Easy wireless system design, configuration and diagnostics

Radio Frequency
865-870 Mhz
Transmitting Power
<25mW e.r.p.
Supply
4x CR123A 3V Batteries
Dimensions (HxLxD)
125mm x 125mm x 58mm
Weight (With batteries)
317g
Humidity (No condensation)
5 to 93 %RH
Operating Temperature
-20 to 60 °C
