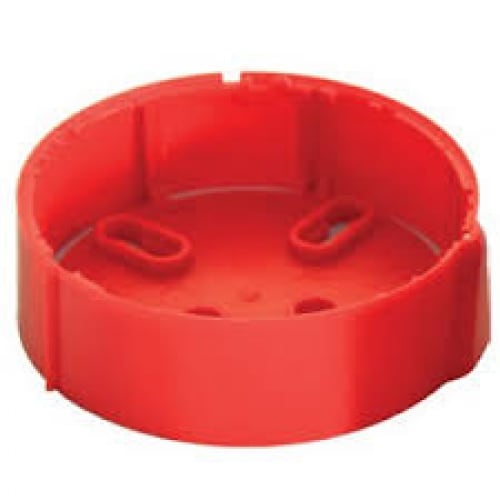

Detector Base Red

B501RF-RR

The Morley Wireless detector base forms part of the Agile range of products that cover a wide range of applications where wiring is undesired. The wireless platform is powered by robust mesh network technology providing up to two communication paths to each wireless device. This makes the network highly reliable, protecting against broken communication links. Mesh network technology enables flexible and economic installations in a wide variety of building footprints.

• Wireless mesh network bidirectional communication technology
• Two communication paths to each wireless device
• 18RF channels at 865Mhz-870Mhz
• 2 integrated antennas on each wireless fire device
• Up to 400m free air communication range
• Upto 5 years average battery service life
• Morley Protocol loop communication
• Addresses set using rotary switches
• Wired fire devices look and feel
• Patented battery service life prediction feature
• Loop powered Gateway
• Upto 32 wireless detector/devices per gateway
• Agile IQ Easy wireless system design, configuration and diagnostics

Height
32mm
Diameter
107mm
Weight (With batteries)
48g
Humidity (No condensation)
10 to 93 %RH
Operating Temperature
-30 to 60 °C
