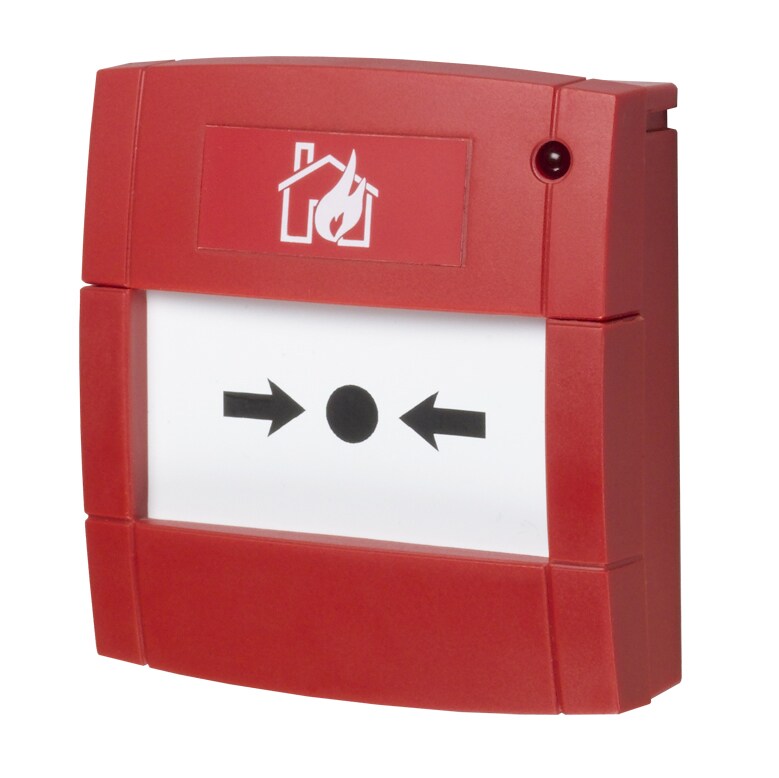

Manual Call Point isolated IP67

W5A-RP06SG-K013-41

The IP67 Honeywell Morley-IAS addressable call point is used in humidity environments to provide a safe and reliable device in areas with dust or humidity. The IP67 addressable MCP is provided with IP67 surface mounting enclosure and transparent cover.
Additional Information
Includes transparent cover PS200 and surface mounting enclosure IP67.
Operating voltage 15 ... 30 V DC
Dimension H: 97.5 mm W: 105 mm D: 75.5 (surface mounted & transparent cover)
Weight 350g
Color red
Ingress protection IP67
Temperature range -30°C ... 70°C
Max. wire guage 2.5 sqmm
Material ABS plastic
Quiescent current 260 uA @ 24 V DC (w/o isolator) 360 uA @ 24 V DC (with isolator)
Alarm current 6 mA @ 24 V DC
Relative humidity 0 ... 95% (non-condensing)
