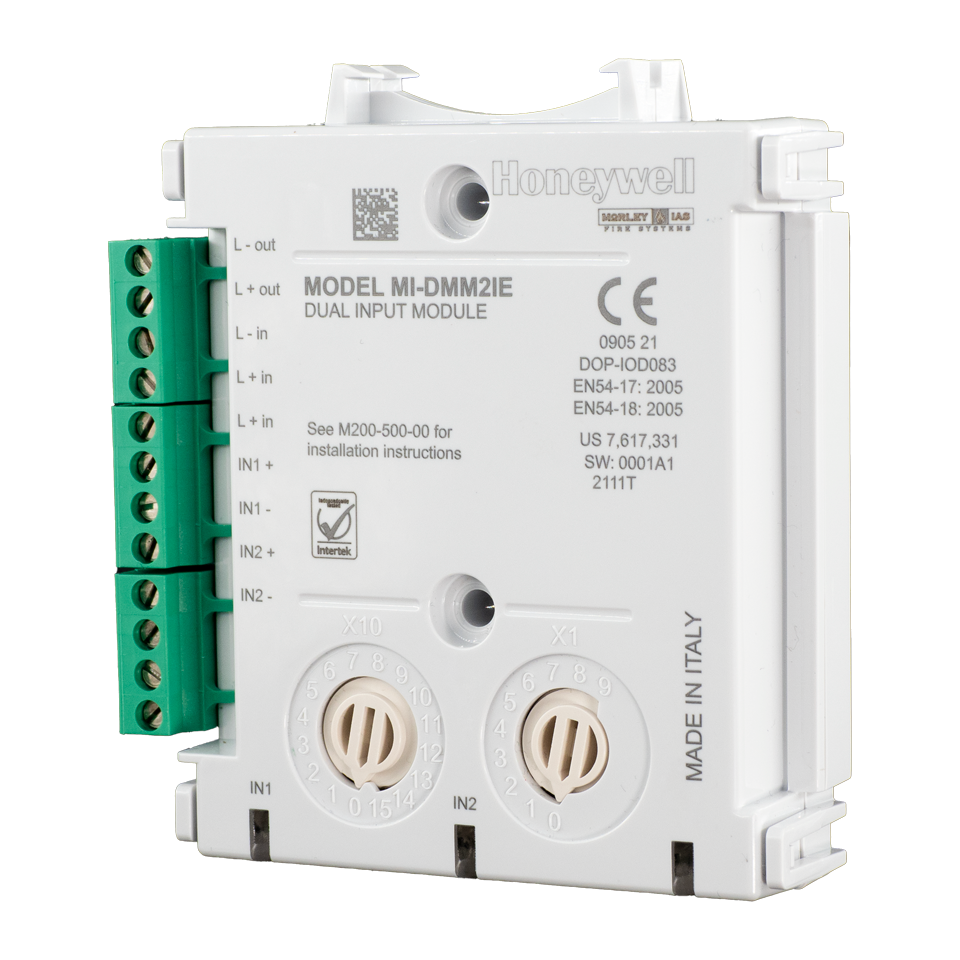

Dual Input monitor module

MI-DMM2IE

The MI-DMM2IE provide supervision of two input circuits respectively from external devices. All modules feature a built-in short circuit isolator. Input channels are capable of both latched and analogue supervision: there are three separate latched states, normal, open circuit and combined alarm/short. The analogue supervision continuously monitors the supervised circuit, returning a signal proportional to the circuit resistance.

• Common mechanical platform for modules’ enclosure
• Low standby current
• FACP reads module power voltage
• High Power Loop 48V ready
• Built-in short circuit isolators
• Addressability through rotary switches
• Tri-colour Light Pipe
• Improved Light Pipe visibility on two sides
• Plug-in field wiring terminals
• Integrated DIN rail brackets
• Lasered engraved label data
• IP rate 30
• Intertek Approved
Operating voltage 15 ... 32 V DC
Maximum Standby Current
140μA at 24VDC no communications
Operating Temperature
-20 ºC to +60 ºC
Relative Humidity
0 to 95% maximum non-condensing
IP Rating
IP30 (IP44 in M200E–SMB)
Dimensions (HxLxW)
22 mm x 82 mm x 93 mm including terminal block
Weight
118g
Maximum Wire Gauge for Terminals
2.5mm2
