Single channel output module

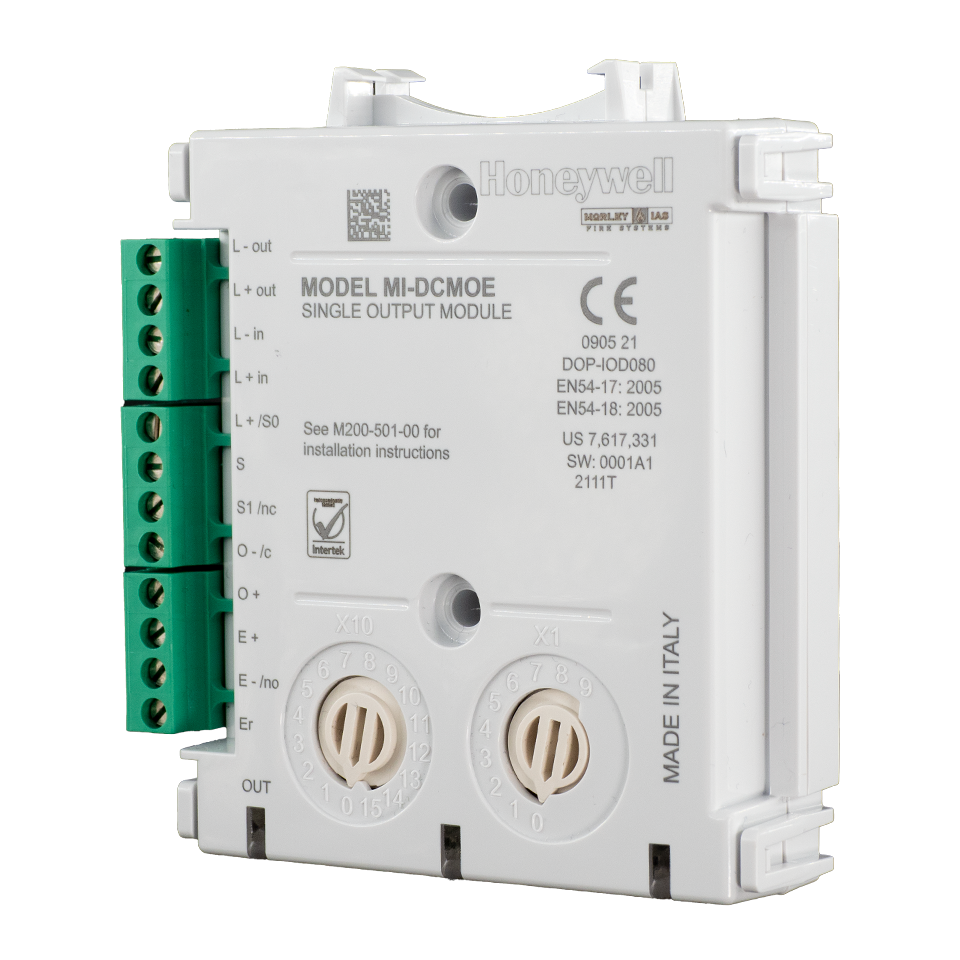

MI-DCMOE

The MI-DCMOE optionally supervises the wiring to the load devices and, upon command from the control panel, switches an external power supply to operate these devices. It also has built-in short circuit isolation capability.In normal supervised mode, the device switches out the load supervision and switches in the external power supply through a double pole relay. The external power supply is monitored and raises an unlatched fault condition if the voltage falls below the fixed threshold. In the unsupervised mode, the device provides neither load nor power supply supervision and can be used to switch a single form C set of changeover contacts.

• Common mechanical platform for modules’ enclosure
• Low standby current
• FACP reads module power voltage
• High Power Loop 48V ready
• Built-in short circuit isolators
• Addressability through rotary switches
• Tri-colour Light Pipe
• Improved Light Pipe visibility on two sides
• Plug-in field wiring terminals
• Integrated DIN rail brackets
• Lasered engraved label data
• IP rate 30
• Intertek Approved
Operating voltage 15 ... 32 V DC
Maximum Standby Current
160μA at 24VDC no communications
Relay Specifications
Normal and unsupervised form C ratings 2A at 30VDC, resistive load
Operation Temperature
-20°C to 60°C
Relative Humidity
5% to 95% (non-condensing)
IP Rating
IP30 (IP44 in M200E-SMB)
Dimensions (HxLxW)
22 mm x 82 mm x 93 mm including terminal block
Weight
118g
Maximum Wire Gauge for Terminals
2.5mm2
