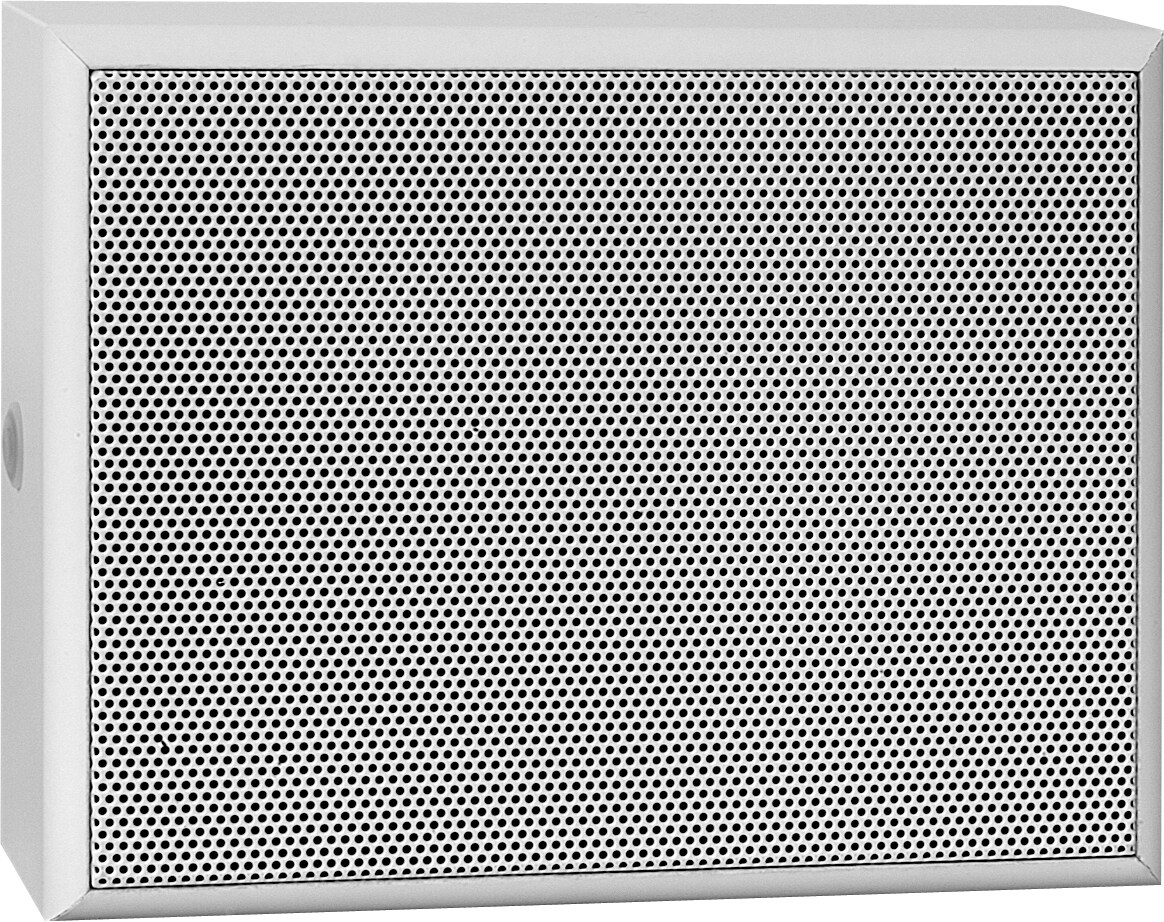

2 x 6 W, 2 x 4" MDF AB- wall surface loudspeaker EN 54
582422
The A/B-cables-wall mounted loudspeaker for voice alarm is certified according to EN 54-24 and offers a maximum security for voice alarm projects.
The WA-AB 06-100/T EN 54 is equipped with two independent chassis and two 100 V output transformers. It enables cost-effective care through two separate (A/B-) lines. In case one line fails, the area will continue sonicated through the redundancy of speakers. In each installation position both A-and B-cable is there and thus provides redundancy. The high-density MDF-wood cabinet (in white) ensures a resonance sound, easy installation is done on a snap-spring system with the rear wall. This version is exclusively for pure wall mounting, if a ceiling mounting or a ball proof variant should be required, then WA 06-165/T-EN 54 V (Part.-No. 582422) is optionally available. The product standard IP 54-24 ensures the operational reliability even under difficult environmental conditions. Both A/B loudspeaker cables are equipped with 2 integrated ceramic terminals and 2 thermal fuses. The chassis are sustainably protected by an impregnation against moisture.
Additional Information:
For a possibly needed ceiling mounting or as a ball impact resistant variation, the WA 06-165/T-EN 54 V (Art.-Nr. 582422) is optionally available.
Delivery time:
Delivery time on request
Rated Power
|
12 W |
Color |
white, similar to RAL 9010 |
Weight kg |
approx. 2.3 kg |
Channel separation |
> 75 dB |
Harmonic distortion at nominal level |
@ 1 kHz |
Dispersion angle |
80° (H), 77° (V) @ 1 kHz |
Type of protection |
IP 54 (zertifiziert) |
Sensitivity EN 54-24, 1 W / 1 m |
89.5 dB |
Sensitivity EN 54 (double) |
92.6 dB |
Sensitivity EN 54-24 max (double) |
100.1 dB |
Sensitivity EN 54-24, max 1 m |
97 dB |
Transformer power taps |
2 x 6 / 3 / 1,5 W |
Transmission range |
227 ... 14600 Hz |
Transmission range (double) |
224 ... 14300 Hz |
Ambient temperature |
-20 °C ... 80 °C |
Dimensions |
W: 252 mm H: 192 mm D: 82 mm |
Sound Level
|
112,8 |
